  • Ultra compact and rugged design with superior print quality
  • Flexible connectivity with Bluetooth & Wireless variants
  • Fast print speeds, with ‘peel and present’ labelling

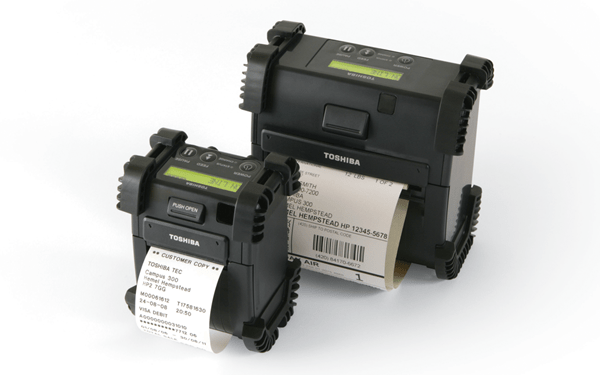

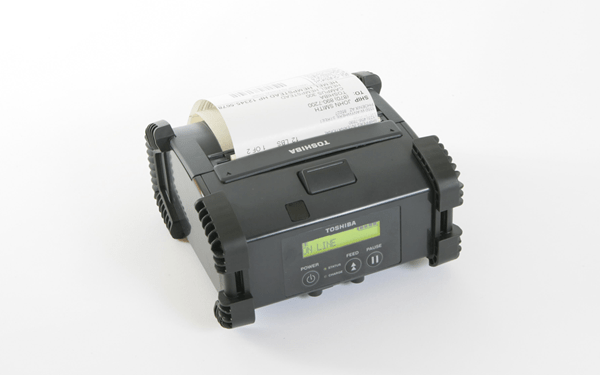

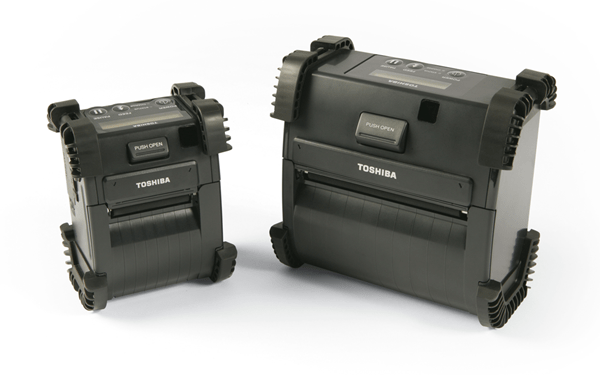

Ideal for most portable applications, these 4 inch mobile printers are compact and light yet rugged enough to meet the needs of today’s demanding applications. Receipts or labels can be dropped in with one hand, and it's large capacity means changing media less frequently, with no cores required on the rolls, so minimal waste. Perfect for barcode labelling in the warehouse, labelling on the shop floor, printing prescriptions on hospital wards or issuing tickets on the move.

Rugged endurance on the move

"We have put our big printer technology into the smallest possible package.

Perfect for labelling on the shop floor, printing prescriptions on hospital wards, issuing tickets in the street or barcoding in the warehouse."

Durable and robust

"In the real world, accidents can happen, so we developed rugged rubber corners, easily passing a 1.8 m drop test on to concrete (1.5 m for B-EP4).

We didn't stop there with the rubber, we used it on the external ports to protect them from any spills. Even strict IP54 enclosure standards against dust and water ingress are surpassed with the optional carry case."

So simple to use

"For user friendliness and very fast operator training times, there's nothing like the clear backlit LCD read-out on the larger Toshiba thermal printers.

So we put it into the mobile range as well, displaying a label counter, battery level, wireless signal strength and error messages. There's audible alerts too, just in case."

Less media changes

"Papers or labels dropped in with one hand? No problem.

The large capacity we've designed means changing media much less often. Plus there's no cores required on the rolls, so minimal waste.

And there's a linerless kit to issue labels without backing paper, for waste-free labelling.*"

Power options

"The high endurance lithium ion battery ensures many hours of operation. Swap it out for external recharging or simply charge in situ using an optional adaptor.

For applications on the road there is a cigarette lighter charging adapter (12 V input) for the B-EP2 and in the warehouse, there's a DC adapter (48 V input) to charge either model in a forklift."

Easy networking

"The EP range is WiFi certified, making networking to all wireless or cabled systems a breeze.

USB 2.0 and IrDA (infrared) are standard across the EP models. Simply choose between Bluetooth, wireless LAN and serial.

The serial model can be upgraded to wireless and Bluetooth."

Swift integration

"The EP series speaks many programming languages and is designed to simply plug and play without any software changes, whether it's a Toshiba printer using TPCL or any make using BCI (Basic Command Interpreter).

Both models will handle inputs from other peripherals such as scales and scanners. Uniquely, they support ESC/POS language."

Applications

Retail

Price mark-down and shelf-edge labelling, queue busting, promotions

Warehouse and logistics

Shipping labels, invoices, parcel tracking, delivery notes

Hospitality

Event and meal tickets, mobile POS

Healthcare

Mobile pharmacy, patient IDs, document and lab sample tracking

Public services

Traffic wardens, police, facilities operatives and public transport (tickets, fines, utility billing, metre reading, etc.)

Field support

PAT testing, receipts for field sales and support charges.

Specifications

Programming Language
Toshiba TPCL, LABEL, RECEIPT, ESC POS; Basic language for the Basic Command Interpreter (BCI)
Direct Thermal Models
203 dpi; 4"/104 mm print width
Options
Batteries, single bay charger, 6 bay charger, Linerless Kit, AC power supply, DC/DC adaptor, Cigarette lighter adaptor (B-EP2 only), Sholder Strap, Carry case
Weight
860 g
Standard Connectivity
GH20 model : IrDA,USB, RS232. GH32 model : IrDA,USB, Bluetooth GH40 model : IrDA,USB, Wireless LAN
Maximum Speed
5 ips (100 mm/sec)
Drop Strength
1.5 m to concrete
Dimensions (W x D x H)
149.9 x 144.8 x 76.2 mm
Max. Print Length
996 mm
IP Rating
IP54 with optional carry case

* It has passed our drop test (6 surface drop from the durable height of each model). The content of this test was established as a standard for design and development. We do not guarantee the durability of individual products under this condition.

For full specifications please refer to the  “DOCUMENTS & RESOURCES” tab.

Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Copyright ©2017
