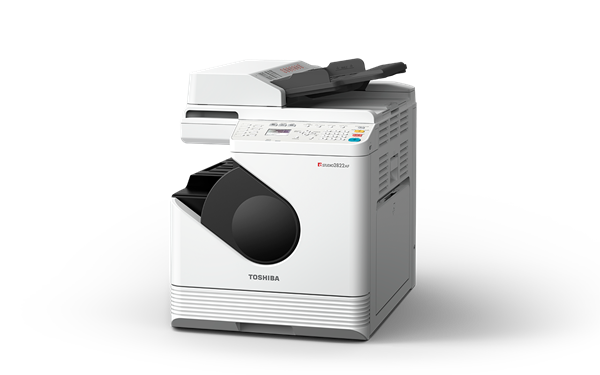

e-STUDIO2822AF left view

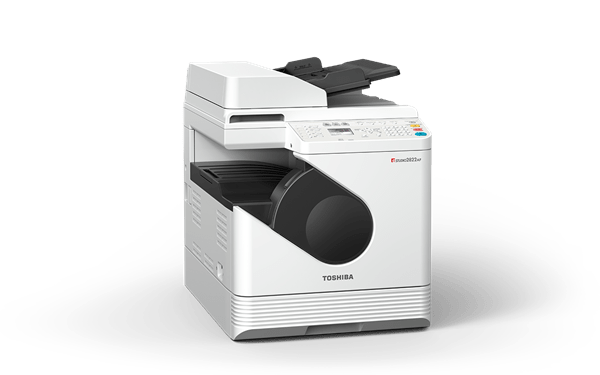

e-STUDIO2822AF right view

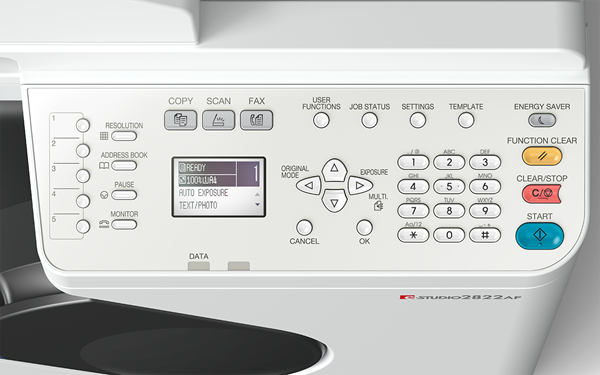

e-STUDIO2822AF Control Panel

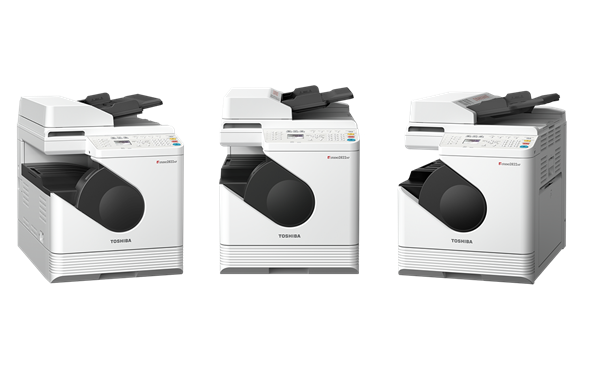

e-STUDIO2822AF range
e-STUDIO2822AF front view
e-STUDIO2822AF left view
e-STUDIO2822AF right view
e-STUDIO2822AF Control Panel
e-STUDIO2822AF range

A3 printer with A4 footprint

  • Print, scan and copy in A3 on a system with an A4 footprint
  • Impressive image quality at 28 pages per minute output
  • Economical device thanks to duplex printing as standard

A smart A4 monochrome MFP delivering a truly flexible and cost effective office solution. Compact in design, the e-STUDIO2822AF series offers A4 output in a small footprint with the unique benefit of being able to print on A3 paper via the bypass - perfect for users with limited space.


Enquire Now

Compact design

Print, scan, copy and fax with up to 28 pages per minutes output in A4 all in one compact unit.

Small footprint with A3 print capabilities

The e-STUDIO2822AF has an A4 size footprint, small enough to be placed on a desktop, yet can print an impressive A3 page via the bypass.

Ecologically Efficient

Resource saving features such as automatic duplex printing, energy saving modes and internal toner recycling are all standard for e-STUDIO2822AF

General

Dimensions & Weight
390 x 540 x 505 mm (W x D x H), 28.5 kg
Paper Size & Weight
Cassette: A4, 64-80 g/m2, Bypass: A5R-A3, 52-216 g/m2
Warm-up Time
Approx. 18 seconds
Inner Output Tray
100-sheet capacity
Paper Capacity
1x 250 sheets (Cassette), 1x 50 sheets (Bypass), Maximum 300 sheets
Memory
512 MB RAM
Print Speed
28 ppm (A4), 14 ppm (A3)
Automatic Duplex
A5R-A3, 64-80 g/m2
Interface
10Base-T/100Base-TX (incl. IPv6), High Speed USB 2.0, WLAN1) (IEEE802.11 b/g/n)

Print

Resolution
Maximum 2,400 x 600 dpi with smoothing
Page Description Languages
PCL 5e and PCL 6 compatible
Print Functions
A3-printing via Bypass, Universal Printer Driver, Print from USB, Driver plug-ins1), Multiple pages per sheet, Toner save mode
Supported Systems
Windows 8/7/Vista/Server 2008 SP2 (32/64 bit), Windows Server 2012/Server 2008 R2 (64 bit), Mac OS X 10.7.4-10.10, Unix/Linux

Scan

Scan Functions
A3-scanning via Reversing Automatic Document Feeder, Scan templates, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP), TWAIN
Resolution
Maximum 600 x 600 dpi
Scan Speed
Monochrome/Colour: 25 ipm (300 dpi)
Document Feeder
50-sheet capacity, A5R-A3, 50-104 g/m2
Scan Modes
Colour, Greyscale, Monochrome
File Formats
JPEG, Multi/Single Page TIFF/PDF (and other formats such as DOCX, XLSX, RTF, TXT, PDF/A)1)

Copy

Resolution
Scan: 600 x 600 dpi Print: 2,400 x 600 dpi with smoothing
First Copy Output Time
Approx. 6.4 seconds
Zoom
25-400% (Platen)
Copy Modes
Text, Text/Photo, Photo, Background erase
Copy Functions
A3-copying via Automatic Document Feeder and Bypass, Copy templates, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode, Auto sort
[This Class 1 laser product complies with IEC60825-1]. Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Productivity and paper specifications are related to paper size of A4 and a paper weight of 80 g/m2 if not otherwise mentioned. Warm-up time and print speed may vary depending on the operating environment.

1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

* Optional
